Product Description

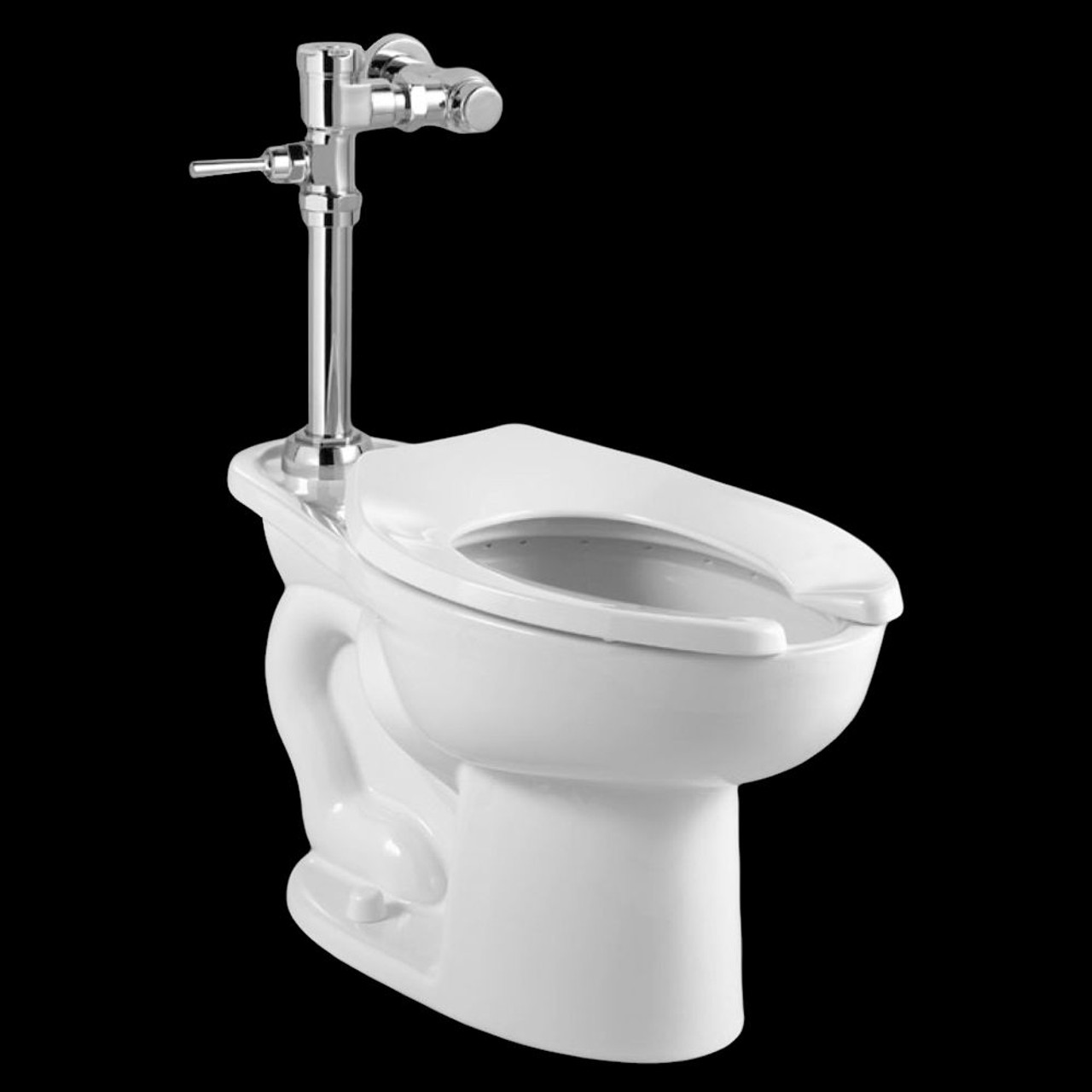

- Floor mount elongated flushometer valve toilet
- Vitreous china
- High Efficiency. Operates in the range of 1.1 gpf to 1.6 gpf (4.2 Lpf to 6.0 Lpf)
- Conventional glaze
- 10" or 12" rough-in
- 16-1/2" rim height for accessible application
- Condensation channel
- Powerful direct-fed siphon jet action
- Fully glazed 2-1/8 trapway
- 10" x 12" water surface area
- 1-1/2" inlet spud
- 100% factory flush tested
- Less toilet seat
- Model 3043.001
- Self-cleaning brass piston with integral wiper spring prevents clogging and reduces maintenance
- Piston operation delivers superior flush accuracy and repeatability
- Piston valve remains closed and does not need to be reset after loss of water pressure
- ADA compliant non-hold open handle provides automatic shut-off after every flush
- Positive seal ensures leak-free performance
- Durable chrome-plated cast brass construction is ideal for commercial applications
Specification
- Width (in):
- 28.25
- Rough-In Size (in):
- 12
- Material:
- Vitreous China
- Height (in):
- 30
- Flush Type:
- Single Flush
- Depth (in):
- 14
- Bowl Shape:
- Elongated
- Bowl Height (in):
- 16.5
- Brand:
- American Standard
- Stock Status:
- Currently Out of Stock
- Component(s) Included:
- Spud, Bolt Caps with Retainers
- Ada Compliant:
- Yes
- Collection:
- Madera
- Color:
- White
- Color/Finish Family:
- Whites
- Warranty:
- Limited Lifetime Warranty
- Product Type:
- Floor Mount
- Residential/Commercial:
- Residential
- Flush Lever Location:
- Left Side
- Country of Origin:
- USA
- ASME Approved:
- Yes
- Flush Rate (GPF):
- 1.6
- VBU#:
- 48095
- SOS#:
- 5118512
Product Videos
Custom Field
Width (in) 28.25
Rough-In Size (in) 12
Material Vitreous China
Height (in) 30
Flush Type Single Flush
Depth (in) 14
Bowl Shape Elongated
Bowl Height (in) 16.5
Brand American Standard
Stock Status Currently Out of Stock
Component(s) Included Spud, Bolt Caps with Retainers
Ada Compliant Yes
Collection Madera
Color White
Color/Finish Family Whites
Warranty Limited Lifetime Warranty
Product Type Floor Mount
Residential/Commercial Residential
Flush Lever Location Left Side
Country of Origin USA
ASME Approved Yes
Flush Rate (GPF) 1.6
VBU# 48095
SOS# 5118512
