Product Description

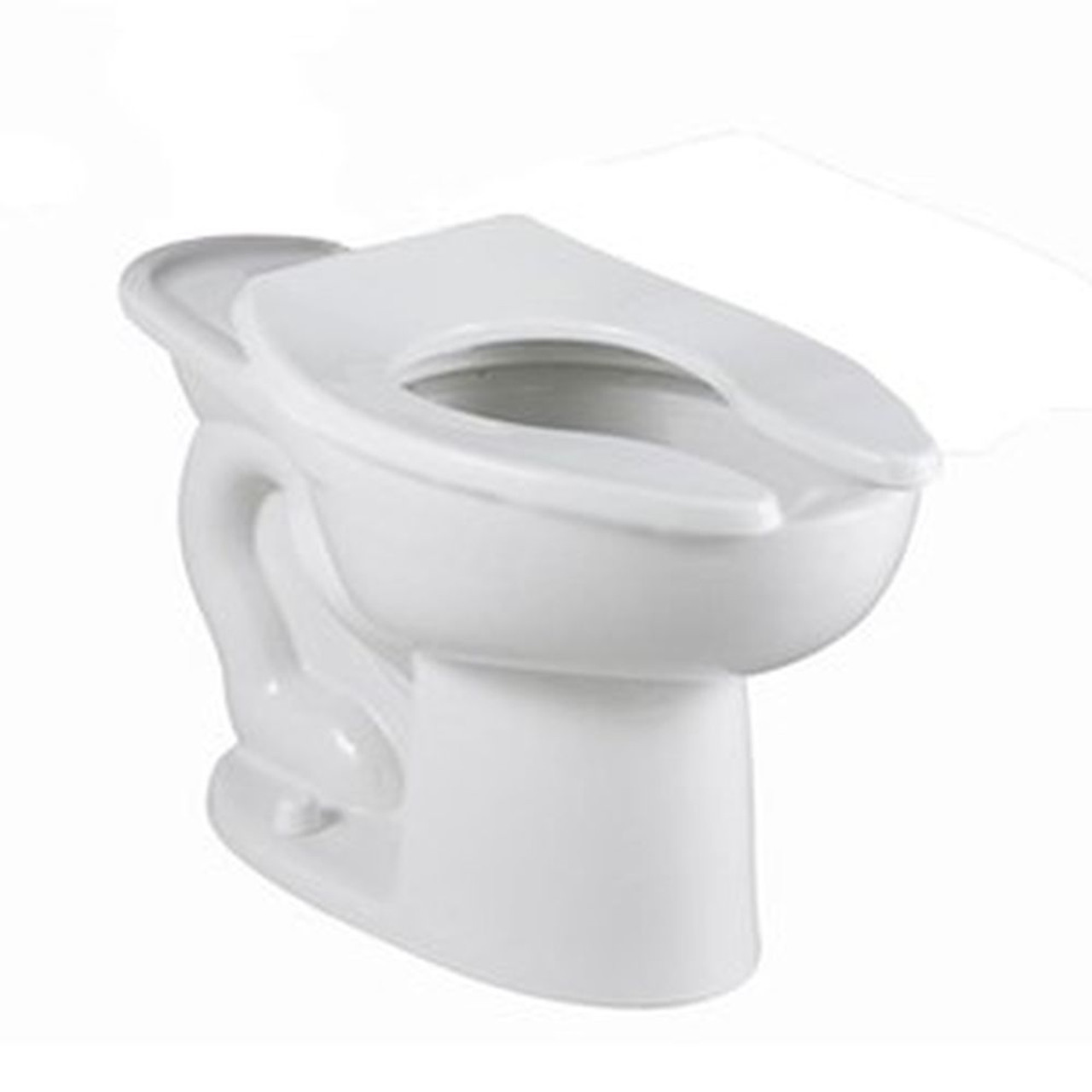

- Elongated floor mount flushometer valve toilet, top or back spud, less seat
- High Efficiency, Low Consumption operates in the range of 1.1gpf to 1.6gpf (4.2Lpf to 6.0Lpf)
- Conventional glaze
- Fully glazed 2-1/8" trapway
- 10" or 12" roughing-in
- 16-1/2" rim height for accessible applications
- Condensation channel
- Powerful direct-fed siphon jet action
- 10" x 12" water surface area
- 1-1/2" inlet spud
- 2 bolt caps
- Nominal Dimensions: 28-1/4" x 14" x 16-1/2"
- (718 x 356 x 419mm)
- Recommended working pressurebetween 25 psi at valve when flushing and 80 psi static
- System MaP Score: 1, 000 grams of miso at at 1.1gpf, 1.28gpf, and 1.6gpf when used with an American Standard flush valve
- Maximum Performance (MaP) testing performed by IAPMO R&T Lab. MaP Report conducted by Veritec Consulting, Inc. and Koeller and Company.
Specification
- Width (in):
- 28.25
- Rough-In Size (in):
- 12
- Material:
- Vitreous China
- Height (in):
- 16.5
- Depth (in):
- 14
- Bowl Shape:
- Elongated
- Bowl Height (in):
- 16.5
- Brand:
- American Standard
- Stock Status:
- Currently Out of Stock
- Component(s) Included:
- Spud, Bolt Caps with Retainers
- Ada Compliant:
- Yes
- Collection:
- Madera
- Color:
- White
- Color/Finish Family:
- Whites
- Warranty:
- Limited Lifetime Warranty
- Product Type:
- Floor Mount
- Residential/Commercial:
- Commercial
- Country of Origin:
- Mexico
- ASME Approved:
- Yes
- Flush Rate (GPF):
- 1.60
- VBU#:
- 48095
- SOS#:
- 5118512
Product Videos
Custom Field
Width (in) 28.25
Rough-In Size (in) 12
Material Vitreous China
Height (in) 16.5
Depth (in) 14
Bowl Shape Elongated
Bowl Height (in) 16.5
Brand American Standard
Stock Status Currently Out of Stock
Component(s) Included Spud, Bolt Caps with Retainers
Ada Compliant Yes
Collection Madera
Color White
Color/Finish Family Whites
Warranty Limited Lifetime Warranty
Product Type Floor Mount
Residential/Commercial Commercial
Country of Origin Mexico
ASME Approved Yes
Flush Rate (GPF) 1.60
VBU# 48095
SOS# 5118512
