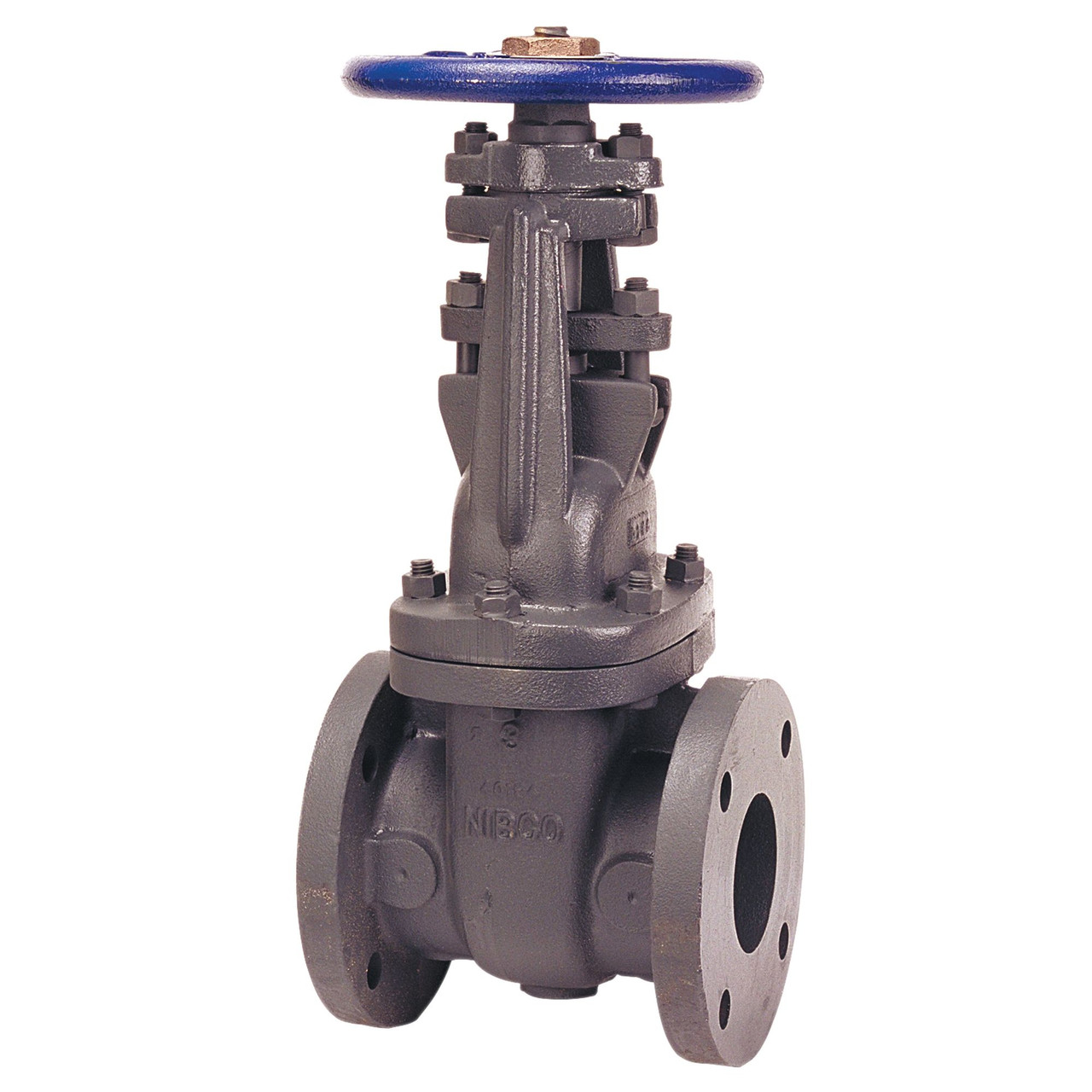

F617O 2 OS&Y FLG GATE CI, Gate Valve - Class 125, Cast Iron, Flanged, F-617-O

Product Description

The NIBCO cast iron gate valve provides full flow with minimal pressure drop. The cast iron gate valve features a Class 125 flanged, flat face end connection for easy installation and accessibility. Outside screw and yoke (OS&Y) gate valves are recommended when positive shutoff and a quick visual indicator of open/closed position is required. The OS&Y configuration protects the stem threads from contact with the media. The NIBCO flanged cast iron gate valve may be used in commercial and industrial applications, including hot and cold water, HVAC, steam, gas and other general utility services. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO pressure rated valves are backed by the NIBCO 5-year 125% limited warranty.

• 125 psi/8.6 bar saturated steam to 353 Degrees F/178 Degrees C
• 200 psi/13.8 bar non-shock cold working pressure
• Outside screw and yoke
• Bolted bonnet
• Solid wedge
• Iron body bronze mounted (IBBM)
• Class 125 flanged flat face end connections
• Use in U.S. drinking water applications is prohibited after January 3, 2014
• Conforms to MSS SP-70
• Size range 2" to 12"
