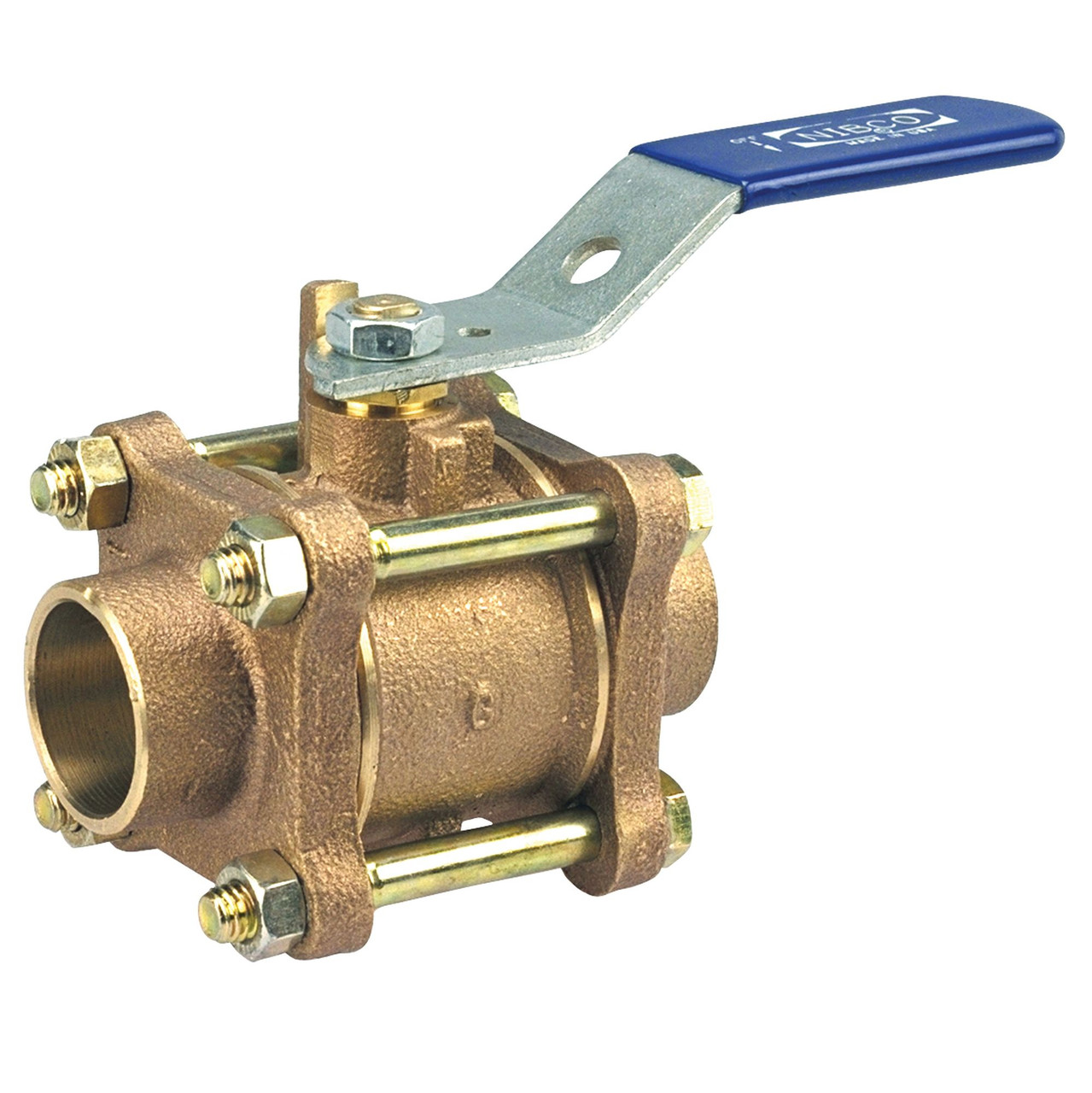

S595Y 1-1/2 CXC 600# FP BV 3-PC, Three-Piece Bronze Ball Valve - Full Port, Solder End Connections, S-595-Y

Product Description

The NIBCO bronze ball valve features solder ends for easy installation. The three-piece valve is ideal for hot/cold water, numerous gas applications, compressed air, vacuum service, condenser and chilled water. It may be used for isolation and throttling (half open to full open only). The three-piece valve is repairable in-line. The NIBCO bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close, and bubble-tight shutoff at 600 PSI. The PTFE seat ring and brass hard chrome plated ball exhibits high chemical resistance properties and is recommended for many high pressure applications. Options include NIB-SEAL insulated handle that eliminates condensate. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.

• Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
• Max temperature rating 400 Degrees F
• Full port
• Chrome plated brass ball, silicon bronze stem
• Blowout-proof stem
• Standard lever handle or locking lever, optional NIB-SEAL
• Solder end connections
• Dezincification resistant
• Use in U.S. drinking water applications is prohibited after January 3, 2014
• Conforms to MSS SP-110
• Size range 1/4" to 2-1/2"
• NIB-SEAL is a registered trademark of NIBCO INC.
