Product Description

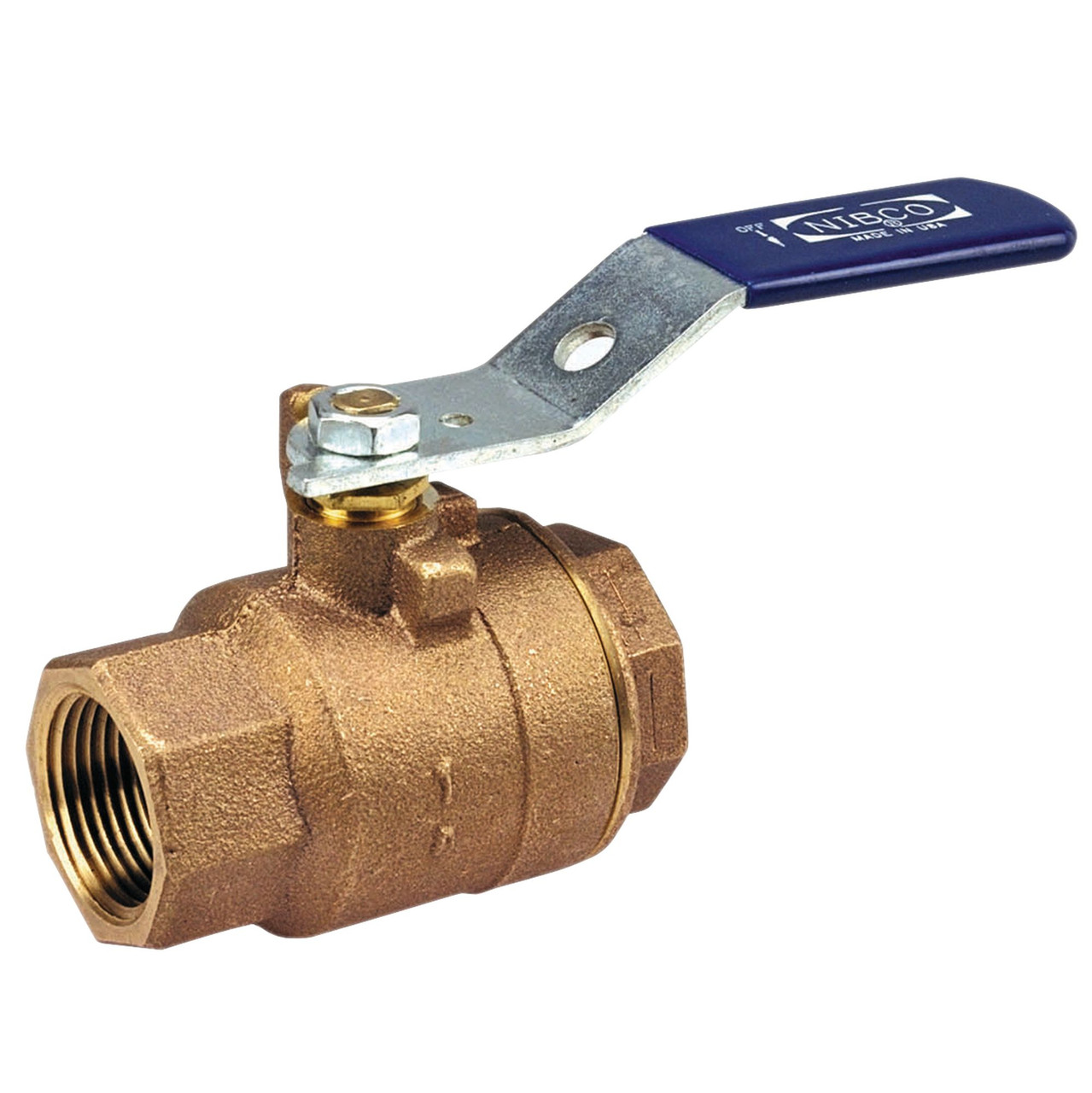

The NIBCO bronze ball valve provides bubble-tight shutoff at 600 PSI. With the reinforced PTFE seat ring and brass hard chrome plated ball, the valve exhibits high chemical resistance properties. The two-piece valve is recommended for many high pressure applications, HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas and natural gas. The NIBCO bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve features thread ends for easy installation. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
- Max temperature rating 400 Degrees F
- Full port
- Chrome plated brass ball, silicon bronze stem
- Blowout-proof stem
- Standard lever handle, optional NIB-SEAL
- Threaded end connections
- Dezincification resistant
- Use in U.S. drinking water applications is prohibited after January 3, 2014
- Conforms to MSS SP-110
- Size range 1/4" to 2"
- NIB-SEAL is a registered trademark of NIBCO INC.
Specification
- Material:
- Bronze
- Brand:
- Nibco
- Stock Status:
- In Stock
- Series:
- 1-1/4
- Size (in):
- 1-1/4
- VBU#:
- 48095
Product Videos
Custom Field
Material Bronze
Brand Nibco
Stock Status In Stock
Series 1-1/4
Size (in) 1-1/4
VBU# 48095
