Product Description

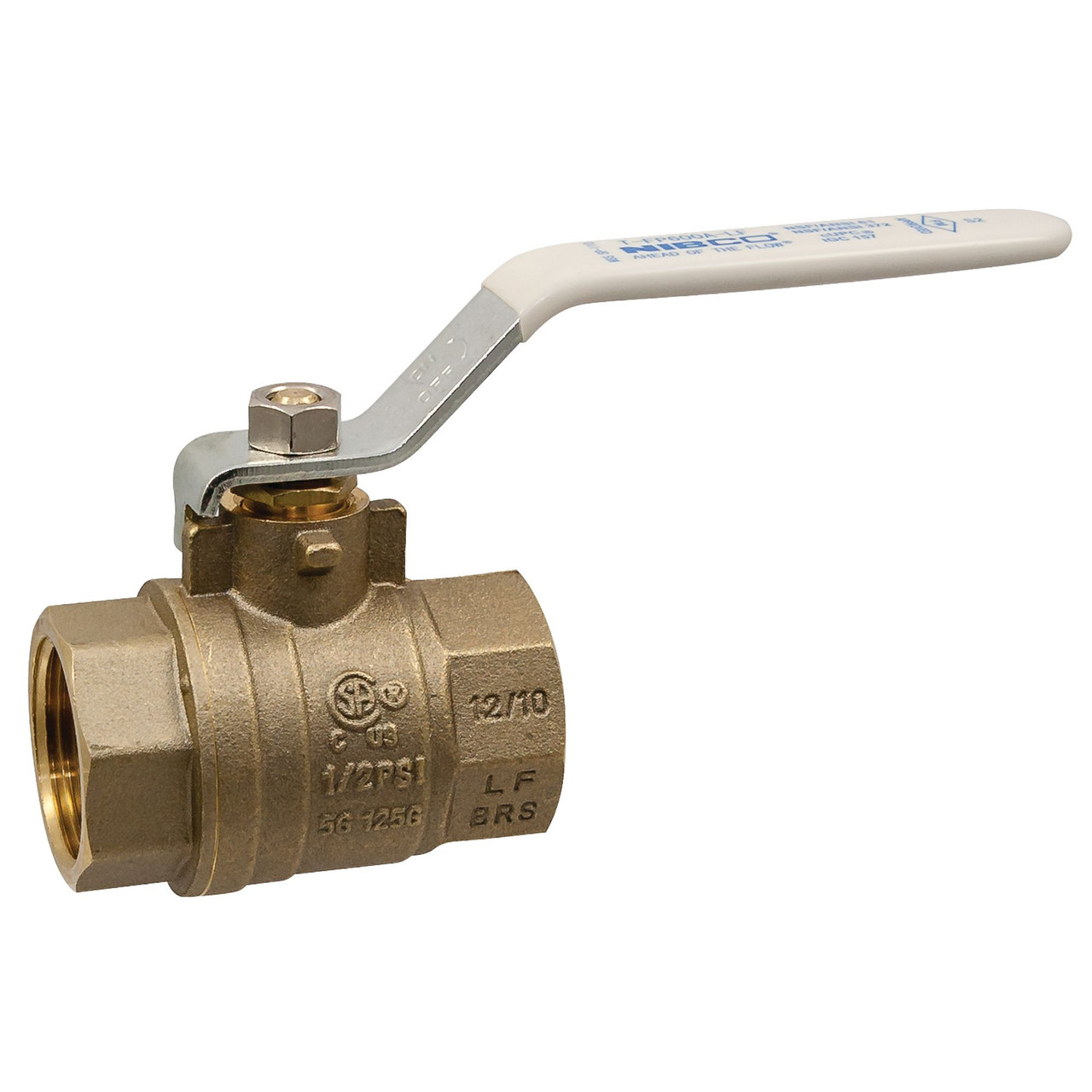

The NIBCO Lead-free- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure (1/4" to 2")
- Valve pressure rating 400 psi/27.6 bar non-shock cold working pressure (2-1/2" to 4")
- Full port
- Blowout-proof stem
- Standard lever handle
- Threaded end connections
- IAPMO listed to NSF/ANSI-61-8, NSF/ANSI-372 and UPC-IGC-157
- CSA ANSI Z21.15 / CSA 9.1 (1/4" to 4")
- CSA ASME B16.44: 5 psig (maximum) (1/4" to 4")
- CSA ASME B16.33: 125 psig (maximum) (1/4" to 4")
- CSA CAN / CGA 3.16 (1/4" to 4")
- CSA CGA CR91-002: 1/2 psig, 2 psig, and 5 psig (1/4" to 4")
- FM 1140 approved 175 wwp (1/4" to 2")
- UL 1477 (YQNZ): Compressed gas shutoff valves - 250 psi (1/4" to 4")
- UL 842 (YRBX): Flammable liquid shutoff valves - 250 psi (1/4" to 4")
- UL 842 (YRPV): Gas shutoff valves - 250 psi (1/4" to 4")
- UL 842 (MHKZ): Manual valves - 250 psi (1/4" to 4")
- UL 125 (YSDT): LP-Gas shutoff valves - 250 psi (1/4" to 4")
- UL Subject 258 (VQGU): Trim and drain valves (1/4" to 2")
- Size range 1/4" to 4"
Specification
- Material:
- Brass
- Brand:
- Nibco
- Guides & Documents:
- Manual - 1
- Stock Status:
- Currently Out of Stock
- Series:
- 2-1/2
- Size (in):
- 2-1/2
- VBU#:
- 48095
Product Videos
Custom Field
Material Brass
Brand Nibco
Guides & Documents Manual - 1
Stock Status Currently Out of Stock
Series 2-1/2
Size (in) 2-1/2
VBU# 48095
