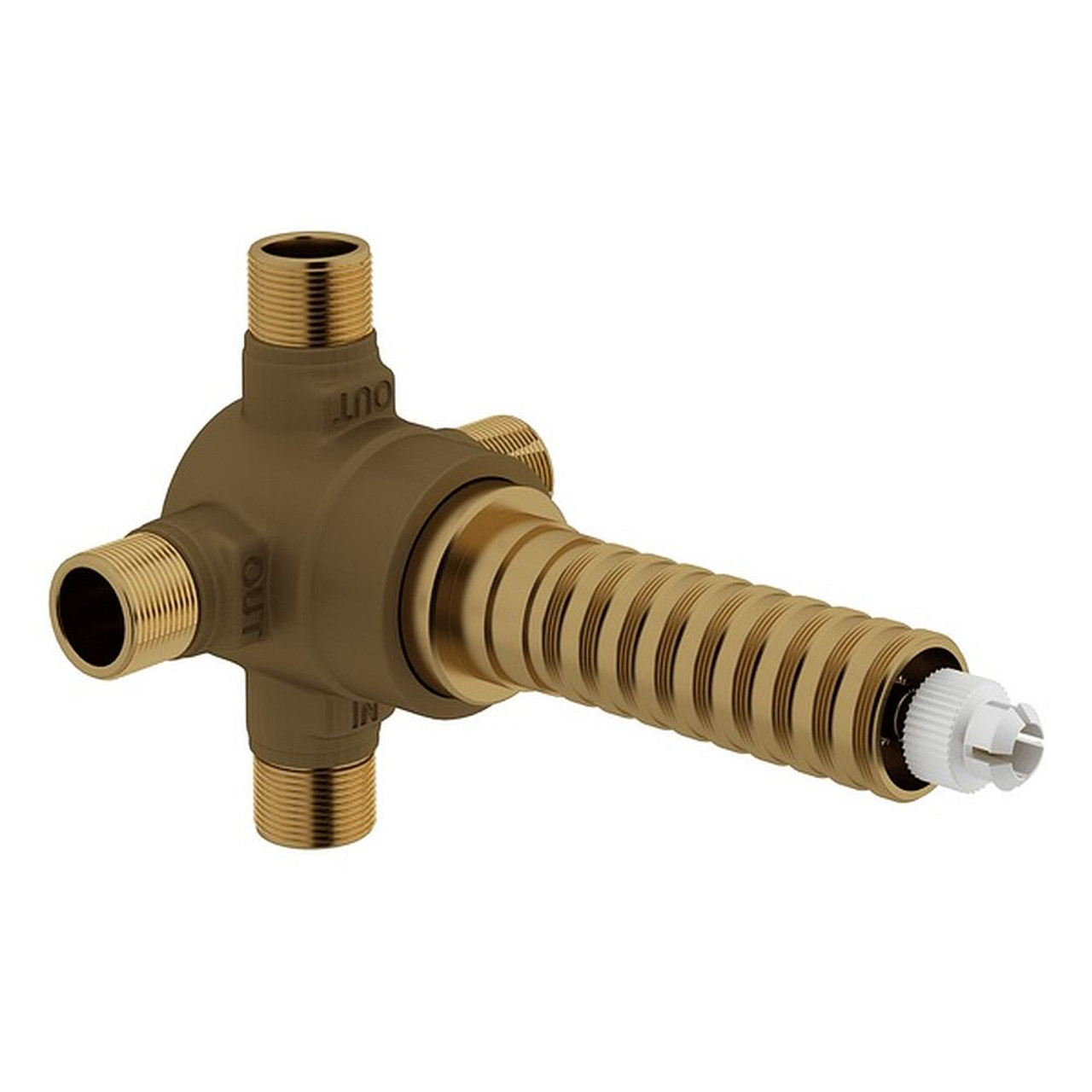

Product Description
- Must use with volume control(s) or pressure balance systems
- Ceramic disc control cartridge
- 1/2"M NPT inlet, 3 x 1/2"M NPT outlets
- Flow is dedicated. May not be split into two outlets at once.
- 2-function operation available, order 9.13862 for alternate cartridge
- Outlets may be capped if not used
- CALGreen compliant
- 5 GPM
- Min. depth is 2-3/16" from the center of the outlet
- Max. depth is 4-11/16" from the center of the outlet
- Includes 2-5/8" extension kit.
- Extension may be cut to length required.
- Must order trim to complete
- Hole Configuration: 1
- Mounting Location: Wall
- Installation Type: Wall
- Limited lifetime warranty
Specification
- Material:
- Brass
- Length (in):
- 4-1/2
- Brand:
- Rohl
- Guides & Documents:
-
Spec Sheet
Warranty Sheet - Stock Status:
- In Stock
- Flow Rate (GPM):
- 5
- Diverter Included:
- Yes
- VBU#:
- 48095
Product Videos
Custom Field
Material Brass
Length (in) 4-1/2
Brand Rohl
Guides & Documents Spec Sheet
Warranty Sheet
Warranty Sheet
Stock Status In Stock
Flow Rate (GPM) 5
Diverter Included Yes
VBU# 48095
