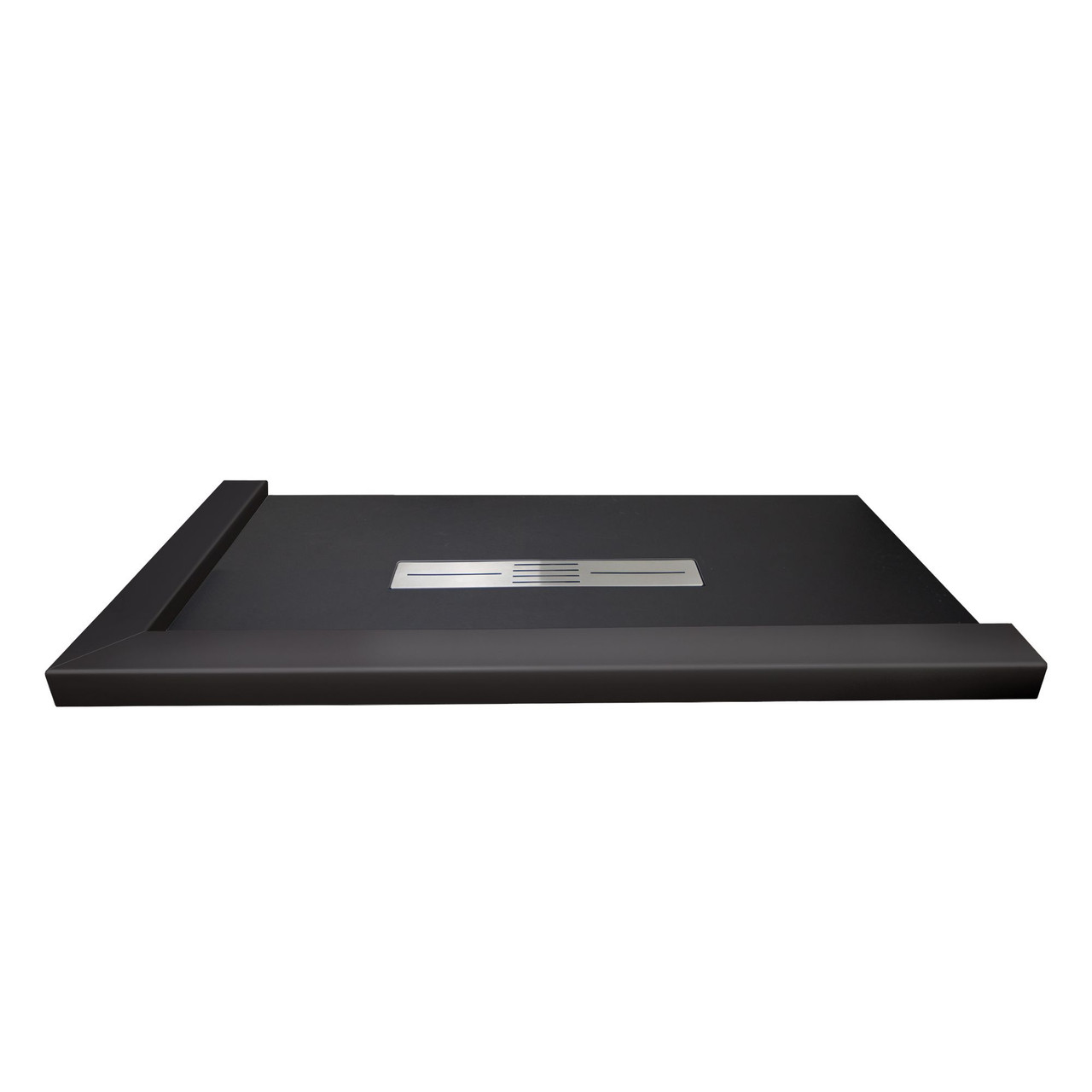

Product Description
Upgrade your shower with Trimslate double threshold shower bases. Featuring two add-on thresholds that accommodate shower doors effortlessly. Threshold adjusts the maximum depth and width up to 2.5-in without any trimming of base. Crafted from solid sheet-molded compound material with sturdy structural ribs, it ensures durability and stability. Field trimmable for customization, it installs easily atop thinset mortar. The lightly textured slate floor is slip-resistant and easy to clean.
- DOUBLE THRESHOLD: includes (2) 80-in long add-on trimmable thresholds with a 45-degree mitered edge to be cut in the field to size; thresholds have a 4-in wide flat surface to accommodate shower doors
- TRIMMABLE: trim up to 4-in in width away from either side of drain or up to 2-in in depth away from drain without any loss of integrity
- MATERIAL: sheet molding compound (SMC) material is made from a composite material composed of resin, fiberglass, and stone filler to create a lightweight and durable material that is stronger than acrylic

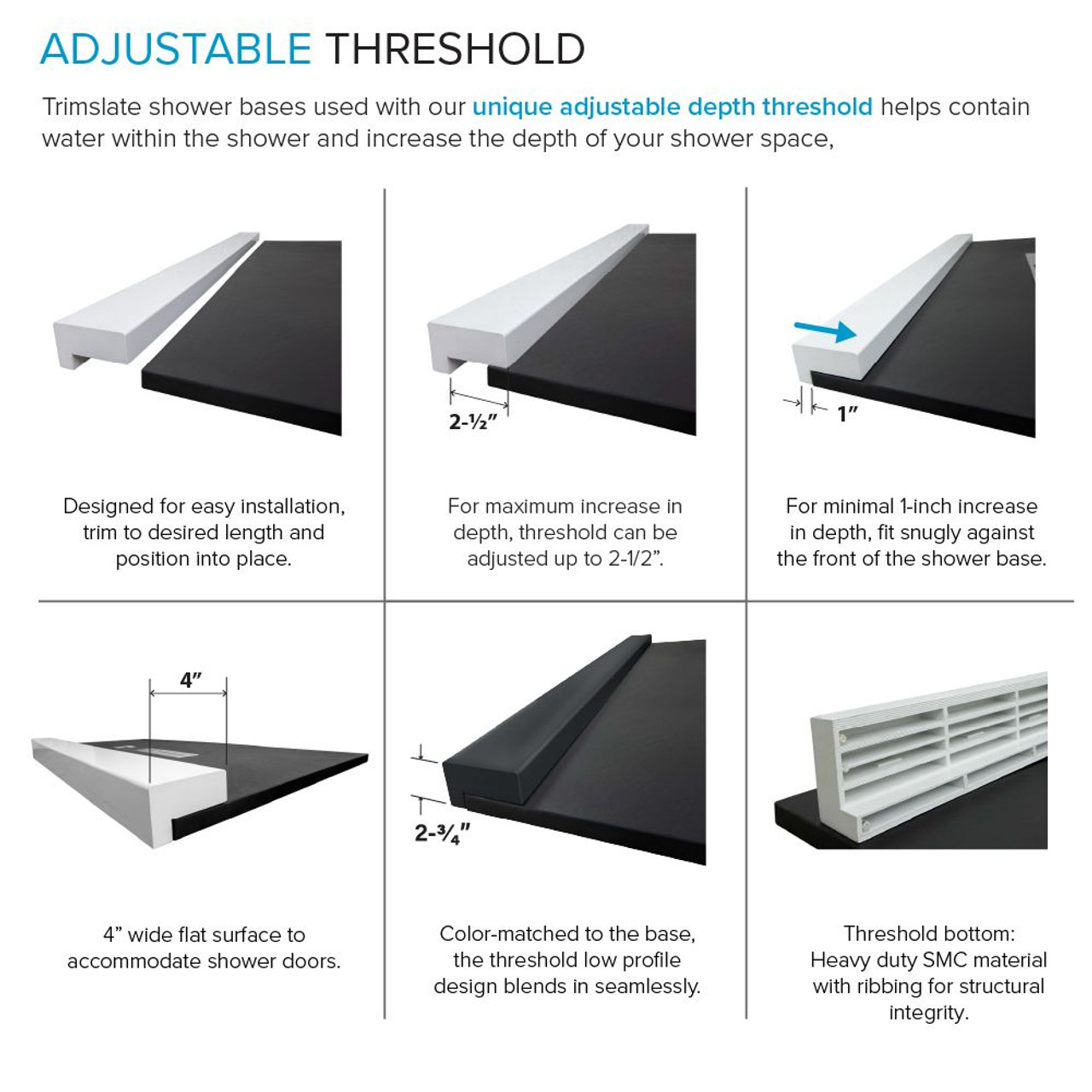

- DOUBLE THRESHOLD: the unique adjustable depth thresholds are designed so the maximum depth and width can be adjusted by up to 2-1/2-in without any trimming of the base; 4-in threshold depth accommodates any shower door
- DRAIN: center drain location with modern rectangular stainless steel drain cover that conceals a conventional 2-in shower drain, creating a pleasing uniform and minimalist design; drain not included
- WATERPROOF: includes three 1-in high aluminum tiling flanges which can be attached to the shower base using epoxy or 100% silicone to ensure no water will sneak in the cracks between your shower base and walls
- INSTALLATION: install atop a thinset mortar mix; once the base is level and drain is installed, install your wall substrate material 1/4-in above the aluminum flanges and install the shower walls on top of the base with added silicone

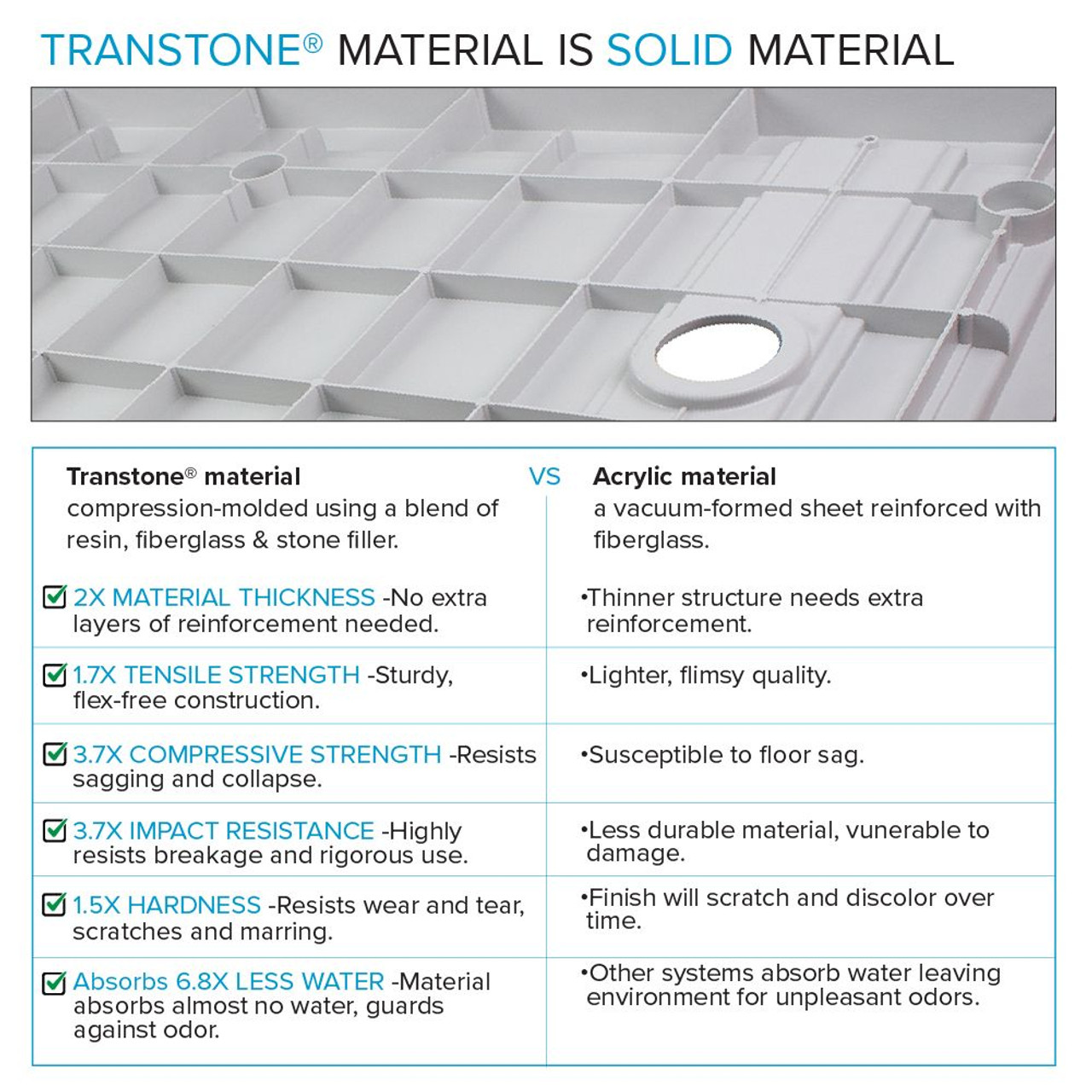

- STRENGTH AND DURABILITY: solid material all the way throughout the base, which is beneficial for protection against scratches, nicks and gouges; has 4 times the impact resistance and 2.5 times the temperature resistance as other bases
- SUPPORTIVE FOUNDATION: the back side of the base employs structural ribbing to easily achieve a perfectly level base while maintaining superb strength
- SAFETY: lightly textured slate floor is slip-resistant and maintains an easy-to-clean surface
- WARRANTY: covered by Transolid’s hassle-free 10-year limited residential or 3-year commercial warranty
Additional Resources
Specification
- Width (in):
- 31.5
- Threshold Depth (in):
- 4.5
- Weight (lb):
- 92
- Material:
- SMC (Sheet Molding Compound)
- Length (in):
- 63
- Height (in):
- 2.75
- Configuration:
- Center
- Left To Right Dimension (in):
- 61 to 65
- Front To Back Dimension (in):
- 29 to 33
- Brand:
- Transolid
- Threshold:
- Double
- Drain Size (in):
- 2
- Threshold Height (in):
- 2.75
- Ada Compliant:
- No
- Collection:
- Trimslate
- Color:
- Black
- Color/Finish Family:
- Blacks
- Warranty:
- 10 Year Limited Residential / 3 Year Limited Commercial
- Product Type:
- Shower Base
- Integrated Seat:
- No
- Drain Assembly Included:
- No
- Residential/Commercial:
- Residential and Commercial
- Drain Location:
- Center
- Installation:
- Alcove
- Country of Origin:
- China
- Shape:
- Rectangular
- VBU#:
- 48095
- SOS#:
- 5661704
Product Videos
Custom Field
Width (in) 31.5
Threshold Depth (in) 4.5
Weight (lb) 92
Material SMC (Sheet Molding Compound)
Length (in) 63
Height (in) 2.75
Configuration Center
Left To Right Dimension (in) 61 to 65
Front To Back Dimension (in) 29 to 33
Brand Transolid
Threshold Double
Drain Size (in) 2
Threshold Height (in) 2.75
Ada Compliant No
Collection Trimslate
Color Black
Color/Finish Family Blacks
Warranty 10 Year Limited Residential / 3 Year Limited Commercial
Product Type Shower Base
Integrated Seat No
Drain Assembly Included No
Residential/Commercial Residential and Commercial
Drain Location Center
Installation Alcove
Country of Origin China
Shape Rectangular
VBU# 48095
SOS# 5661704
